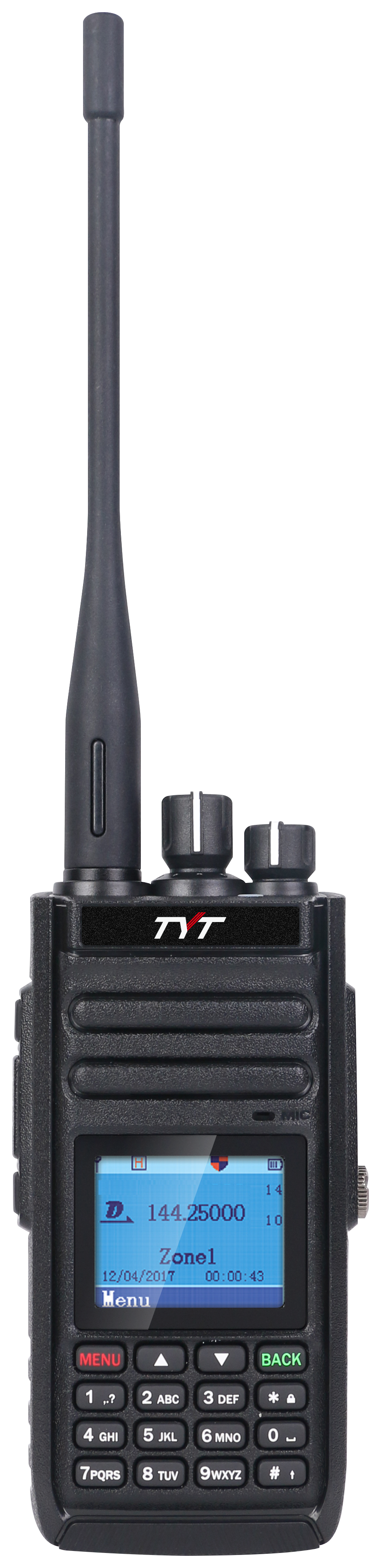

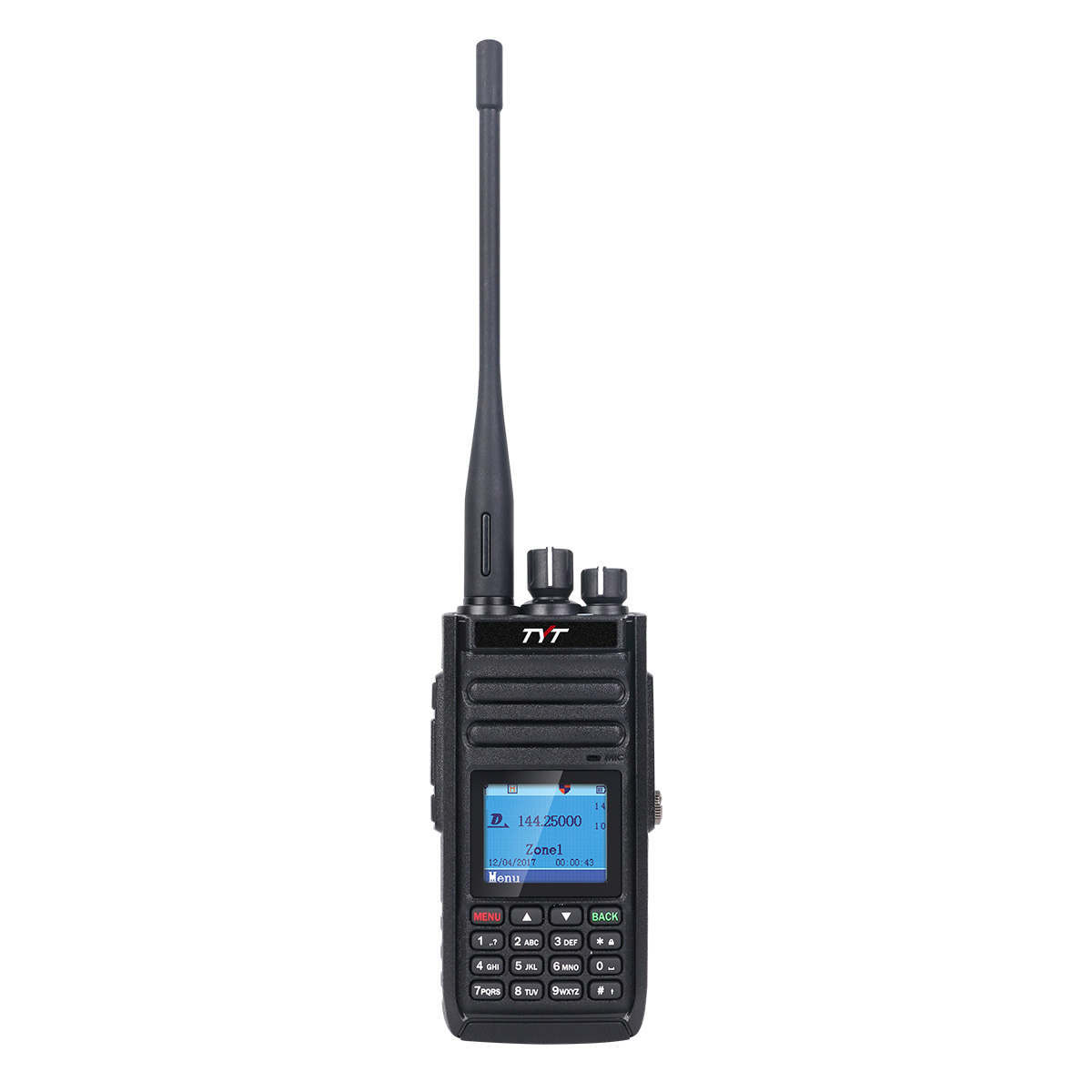

DP-6600 is a DMR radio, which offers digital and analog communication experience. The radio offers 3,000 channels, 1,000 contacts. IP67 waterproof function makes the radio immersed in 1M deep water within 30 minutes can still be used normally.
More fantastic functions, please check the main features.
|
General |
|
|
Frequency Range |
136.000-174.000mhz |
|
Channel |
3000 Channels |
|
Frequency Stability |
±1ppm |
|
Operating Voltage |
7.4v Dc |
|
Battery Type |
Lion |
|
Operating Temperature |
-30°c~+60°c |
|
Channel Spacing |
12.5khz |
|
Antenna Impedance |
50ω |
|
Audio Output Power |
≤1000mw@162 |
|
Battery Capacity |
2800mah Li-Ion Battery With Type c |
|
Dimension |
141mm*66mm*46mm |
|
Weight |
354g |
|
Transmitter |
|
|
Power |
h:8w m: 5w l: 1w |
|
Frequency Stability |
+-1.0ppm |
|
Adjacent Channel Power |
≤-60db |
|
Free Time Slot Power |
Tdma: ≤57dbm |
|
Hum And Noise |
-40db@125kh2 |
|
Spurious Radiation |
Antenna:9khz-1ghz ≤-36dbm 1ghz-12.75ghz ≤-30dbm |
|
Fm Modulation Mode |
12.5khz:11k0f3e |
|
4fsk Digital Mode |
12.5khz (Data Only): 7k60fxd 12.5khz (Data+ Voice): 7k60fxw |
|
Modulation Maximum Deviation |
2.5khz@12.5khz |
|
Nonactive Slot Power |
-57dbm |
|
Digital Protocol |
Etsi Ts 102 361-1-2-3 |
|
Vocoder Type |
Ambe+2tm |
|
Audio Response |
+1db~-3b |
|
Modulation Ber(Bit Error Rate) |
≤5% |
|
Receiver |
|
|
Analog Rx Sensitivity |
0.2v @12db Sinad |
|
Digital Sensibility |
0.25uv(Ber:5%) |
|
Adjacent Channel Selectivity |
≤-60db@12.5khz |
|
Intermodulation |
≤60db |
|
Spurious Response |
≥70db |
|
Rated Audio Power |
1w |
|
Audio Response |
+1db~-3b |
|
Rated Audio Distortion |
<5% |
|
FM Noise |
≥45db @ 25khz ≥40db @12.5khz |
